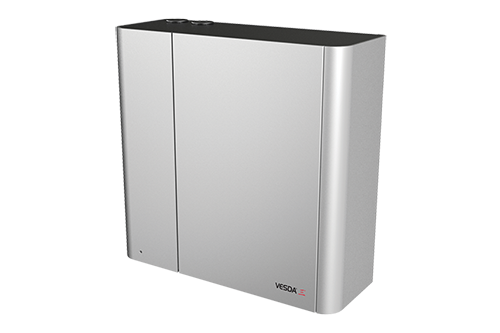

VESDA-E VEA 40-Relay Local StaX

Name: VESDA-E VEA 40-Relay Local StaX - Fire Suppression
SKU: VESDA - VER-A40-40-STX
Availability: InStock

VESDA-E VEA 40-Relay Local StaX connection of up to 40 additional relays to a VEA-040-A00 or a VEA-040-A10. Inside the enclosure is space for addressable modules to connect to each relay. The VER-A40-40-STX is shipped to provide Fire 1 outputs as a default, however, two additional VER-A40-40-STX can be installed to expand reporting for Alert and Action.

ENQUIRE ABOUT THIS PRODUCT

About

The VESDA VEA is an addressable air sampling smoke detector. The VEA detector detector hosts up to 40 off 6mm microbore capillary tube connections. Each microbore tube is connected to a single sampling point within a protected enclosure. The unique advantage of this detector allows smoke detection from a single location without having to enter a protected space to test and maintain a detector. The system can provide up to 40 monitored locations for Action, Alert and Fire using the extended VESDA-E VEA 40-Relay Local StaX unit. THE VEA range is particularly useful in locations where restricted access is in place. All mission critical components are located within the detector housing and STAX ancillary equipment. Detectors can been connected onto a VESDA Net network for greater addressability.

DOWNLOAD DATASHEET

How it works

The Detector constantly draws air into the detectors chamber using built-in aspirator. The incoming air is continuously measured for smoke contamination. When smoke is detected, the detector will initiated its selector rotary valve system to individually sample air from each of the connected microbore connections. Following the this process, the detector will then select the tube with the highest level of smoke contamination. The detector has three separate alarm thresholds that can be programmed for Action, Alert and Fire. Each level of alarm will provide an output and also and audio visual alarm.

Features

Precise addressability Air Flow monitoring for all microbore connections Single access point for testing and maintenance Self Cleaning at predetermined intervals Three levels of alarm for each microbore connection Variable microbore lengths can be used up to 100m Linear aspirator technology LED's or 3.5" display for alarm levels 7 fully Programmable relays available for fire and fault alarms Two general purpose inputs available for configurable actions Mobile devices can monitor the detector via the iVESDA app Enclosure rated to IP40 VESDANet compatible WiFi, 802.11 b/g/n USB Hub Port Configuration Convenient Cable Termination bay 20,000 events

Applications

Hospitals Correctional facilities Hotels and Restaurants Theatres Electrical cabinets Schools Elderly homes Warehouses Data Centres Wind Power Generation

Certifications

UL ULC FDA VdS (EN54-20) AFNOR CE UKCA CSFM FM ActivFire (ISO 7240-20) BOMBA RCM CCCF
