VESDA-E VEA
The highest level of smoke detection accuracy.
Addressable Smoke Detection Technology 40 addressable sampling point

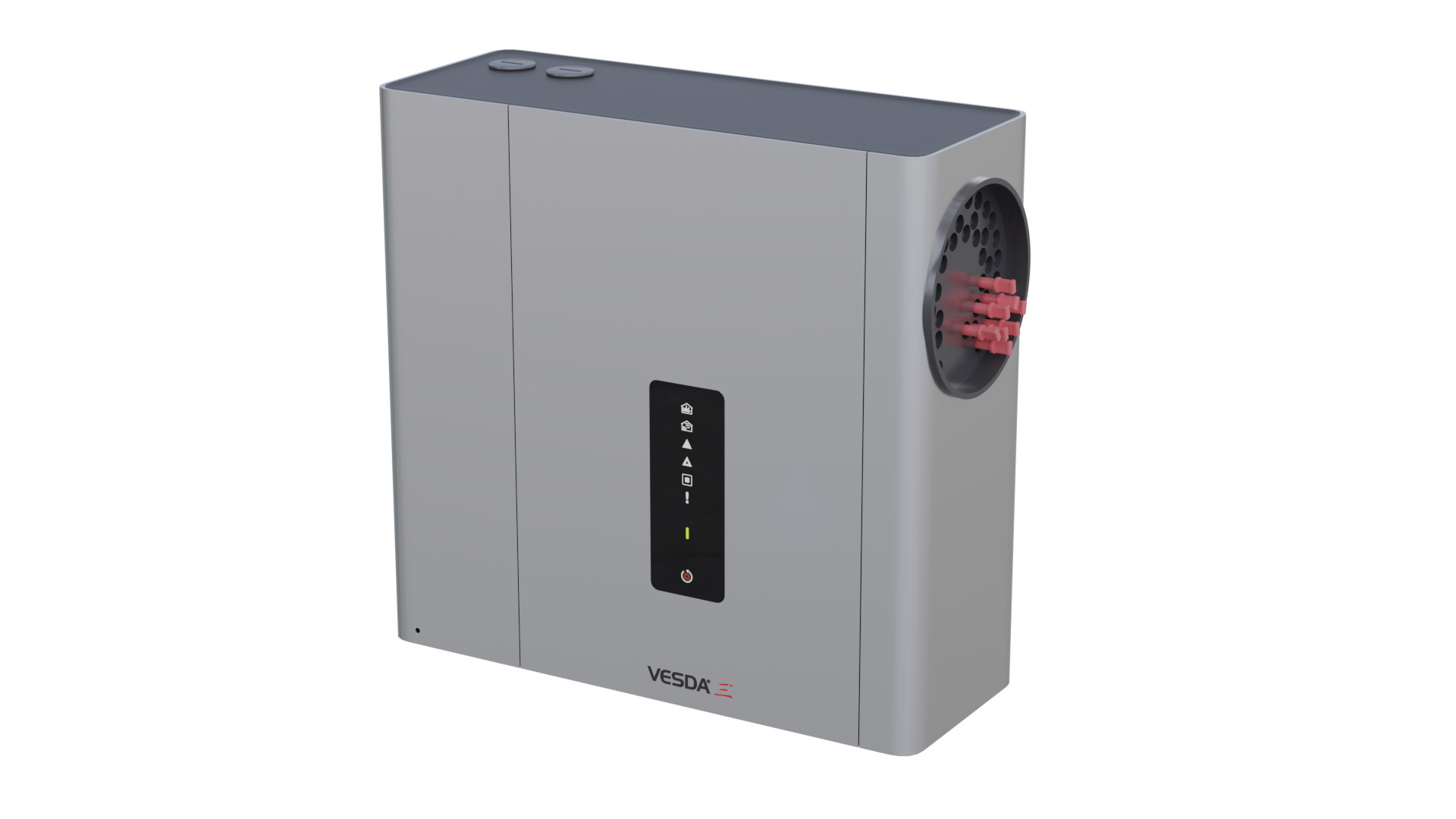

The VESDA-E VEA smoke detector is a 40 point addressable air sampling smoke detector.
Utilising its Flair Detection technology, this detector can reliabily detect smoke without causing nuisence alarms.
This detector features
- Addressable smoke detection technology
- Assured detection
- Alert and Action - two pre alarm levels
- 20,000 Event logs
- VESDANet neywork compatible
- 7 fully programmable relays
- Field replaceable: filter, smoke sensor, pump and rotary valve
- Perfect for point testing
- Blockage detection at set intervals for all tubes
- Automatic sampling point cleaning at set intervals
- Three sensitivity settings for the sampling points
- Variable length capillary tubes, up to 100 m (328 ft)
- Laser-based absolute smoke detection
- Upto 40 addressable microbore tubes usining individual sampling points
- Optional :- LEDs for alarm and fault signalling
- Optional :- 3.5” colour touch screen for status review
- Two GPIs, monitored and unmonitored
- VSC and VSM4 PC software support
- IP 40 enclosure
- Field replaceable components for easy maintenance
PIPE CONFIGURATION
- Normal Diameter: OD 6 mm, ID 4 mm
- Normal Diameter (6mm): Up to 100m (328 ft) per tube
- Reduced Diameter (4mm) Up to 15 m (49 ft) per tube
Variants
- VEA-040-A00 VESDA-E VEA-40 Aspirating Smoke Detector with LEDs
- VEA-040-A10 VESDA-E VEA-40 Aspirating Smoke Detector with 3.5” Display
- VER-A40-40-STX VESDA-E VEA 40-Relay Local StaX
